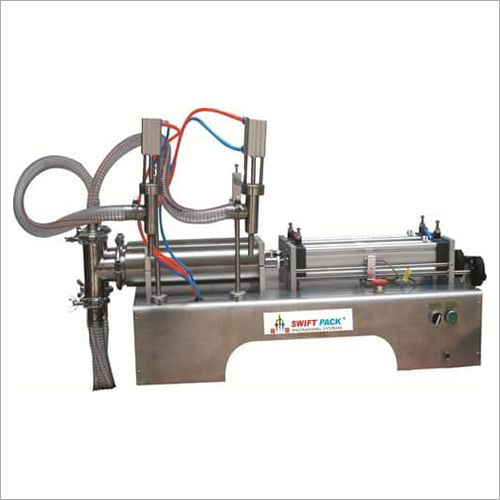

Liquid Filling Machinerefers to a type of packaging machine that takes the measurement of particular container, mass or volume and, fills the product into that pouch which is further used for packaging. This machine is mainly used for packing food or beverage but for other goods and items as well. This machine is used to fill either a pouch or bottle, depending on the liquid product.
Technical Specification:-
Model | SPLF-1000 |
Voltage (V/Hz) | 220/50 |
Power (w) | 20 |
Gas Pressure (Mpa) | 0.4 - 0.6 |
Filling Range(ml) | 100-1000 |
Filling Capacity(times/min) | 10-18 |
Filling Accuracy | <= 1% |
External Dimensions (L xW x H) (cm) | 100 x 50 x105 |
Net Weight(kg) | 40 |
